Large Size Pulper - OpTest

  Home/Pulp and Fibrous Materials/Large Size Pulper

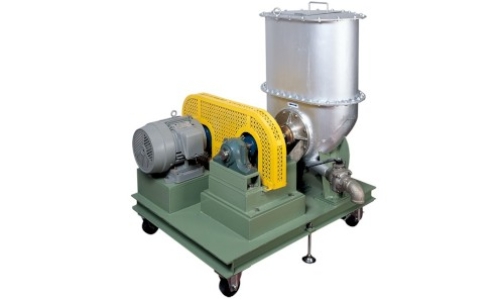

Large Size Pulper

This is a small type simulating the pulper used in the paper mill. It rapidly disintegrates pulp and waste paper. For effectively circulating slurry and giving shear force, the impeller is placed on the bottom, thereby shortening disintegration time, and reducing power cost.

Product Name Large Size Pulper
Product Code KRK-2534
Manufacturer Kumagai Riki Kogyo Co., Ltd. ( KRK )
Availability from OpTest Exclusive to Canada, USA, and Mexico

Capacity: 100 to 500 liters
Concentration: 3%
Specimen: 3 to 15kg
Specimen Tank: made of SUS-304
Runner Diameter: 200 to 300mm
Rotation Speed: 500 to 1300rpm
Motor: three-phase 200/220VAC 7.5kW
Stepless Speed Change: control with inverter
Power Source: three-phase 200/220VAC 50/60Hz 30A
Outer Dimensions: 1200 x 1500 x 1800mm (500 liters)
Instrument Weight: 950kg (500 liters)
