Description

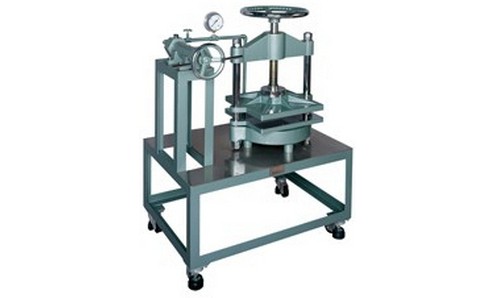

This press couches and squeezes water out of paper sheets produced on a sheet machine. A plunger-type pump is employed, which sends stored glycerin to the rubber diaphragm at the press section when the pump handle is operated. The diaphragm then pushes up the lower pressure board to compress the specimen. Improvement has been made with the stability while applying pressure to achieve squeezing with a higher pressure.
Specimen Size 400×400mm
Table Size 420×420mm
Pressure max. 1.5MPa
Interval Between Upper and Lower Boards max. 200mm
Accessory mounting support
Outer Dimensions 1,100×700×1,450mm
Instrument Weight 370kg
