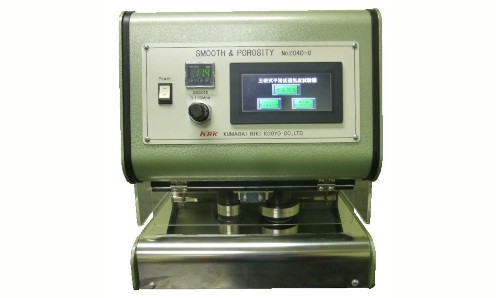

Oken Type Smoothness and Air-permeability Tester (Digital)

Description

This machine, like the H model, is designed to determine smoothness and air permeability by converting to pressure the airflow between the standard surface and the surface of a specimen under certain conditions. The digital model uses an electronic manometer instead of the water column type air manometer, displaying smoothness and air permeability as a digital value. In addition, use of the timer enables to display measurement values always in stable status. This machine is optimal for field management with the following advantages; Measurement in short time. Easy in reading measurement values, because they are expressed as digital values. The tester for smoothness only or for air-permeability only also is available.

Measurement Area for Smoothness 8.08cm²
Measurement Load for Smoothness 8.08kg
Total Length of a Measurement Ring 733mm
Measurement Area for Air-permeability 645.16mm²（1.00in²）
Measurement range (switch of nozzles)
Median of Smoothness 100, 500, 1,000sec.
Median of Air Permeability 100, 500, 1,000, 2,000sec.
Electronic Manometer Capacity 1,000mmH2O
Standard Air Pressure 500mmH2O, adjustable in 3 stages
Timer display in three digits (sec.)
Power Source 100/110VAC 50/60Hz 1A
Air Source 0.5MPa
Outer Dimensions 340 x 420 x 410mm
Instrument Weight 40kg
