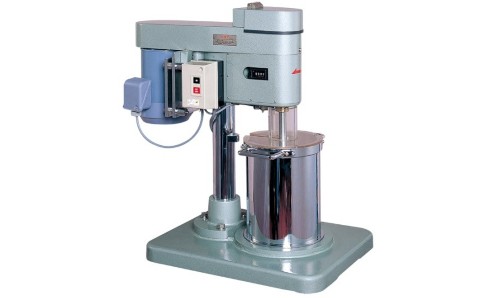

Large Size Pulp Disintegrator (10L or 30L)

Description

This machine is used in the same manner as the standard pulp disintegrator. It is suitable for disintegration of a relatively large amount of specimen. It is indispensable for pre-treatment for paper sheet making.

Capacity: 5, 10, 20 liters
Concentration: max. 2.5%
Disintegration Time: set by the timer
Motor: three-phase 200/220VAC 0.75 to 2.2kW
Outer Dimensions:

645x 420 x 680 mm (5 liters)
670 x 420 x 800 mm (10 liters)
730 x 475 x 950 mm (20 liters)
Instrument Weight:

120kg (5 liters)
126kg (10 liters)
143kg (20 liters)

Large-size pulp disintegrator (30 liters)
Since the slurry is discharged through the port in the container bottom, it is not necessary to place and remove the container, facilitating operation.

Capacity: 30 liters
Concentration: max. 2.5%
Specimen Tank: fixed on the specifically designed support
Rotation Speed: 2,000rpm
Disintegration Time: set by the timer
Motor: three-phase 200/220VAC 2.2kW 9A
Discharge Port: 52mm in diameter (with valve)
Outer Dimensions: 500 x 750 x 1440mm
Instrument Weight: 157kg
