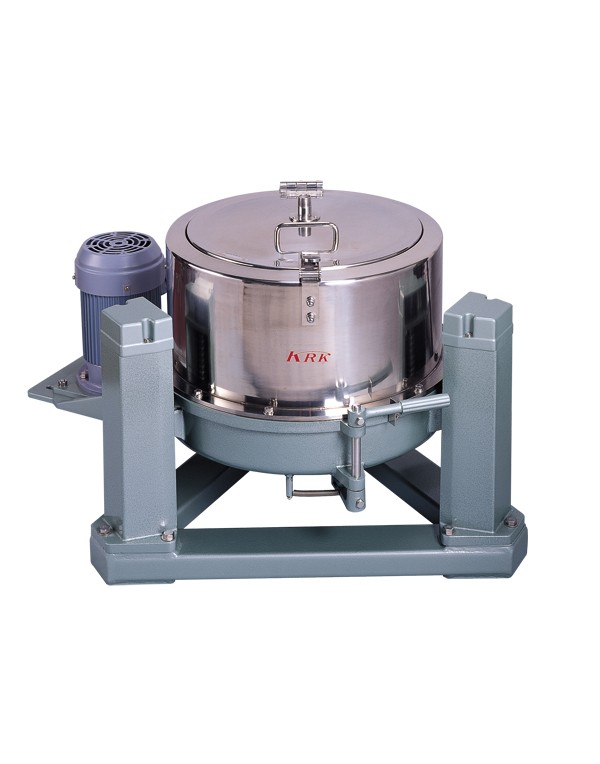

Large Size Centrifugal Pulp Dehydrator (Suspended on Three Legs)
Description
This machine rapidly dehydrates pulp slurry. Unique suspended design completely offsets unbalance in rotation. Low noise of rotation. The brake immediately stops the operation.
Material of Section in Contact with Liquid: SUS-304 (stainless Steel)
Optional: filter cloth, rotation control with inverter
Power Source:
A, B 100/110VAC 50/60Hz 9A
C, D three-phase 200/220VAC 50/60 Hz 7A
Outer Dimensions:
A 550 x 710 x 570mm Instrument weight 78kg
B 620 x 850 x 610mm Instrument weight 100kg
C 830 x 1100 x 610mm Instrument weight 250kg
D 830 x 1100 x 610mm Instrument weight 270kg
|
Inner diameter |
Depth |
Capacity |
Rotation Speed |
Motor |
|
|
A |
240mm |
140mm |
3 liters |
3000rpm |
0.4kW |
|
B |
300mm |
160mm |
4.5 liters |
3000rpm |
0.75kW |
|
C |
405mm |
200mm |
12 liters |
2000rpm |
1.5kW |
|
D |
455mm |
210mm |
15 liters |
1800rpm |
1.5kW |
