KRK 2500 Series Refiner Plates

Description

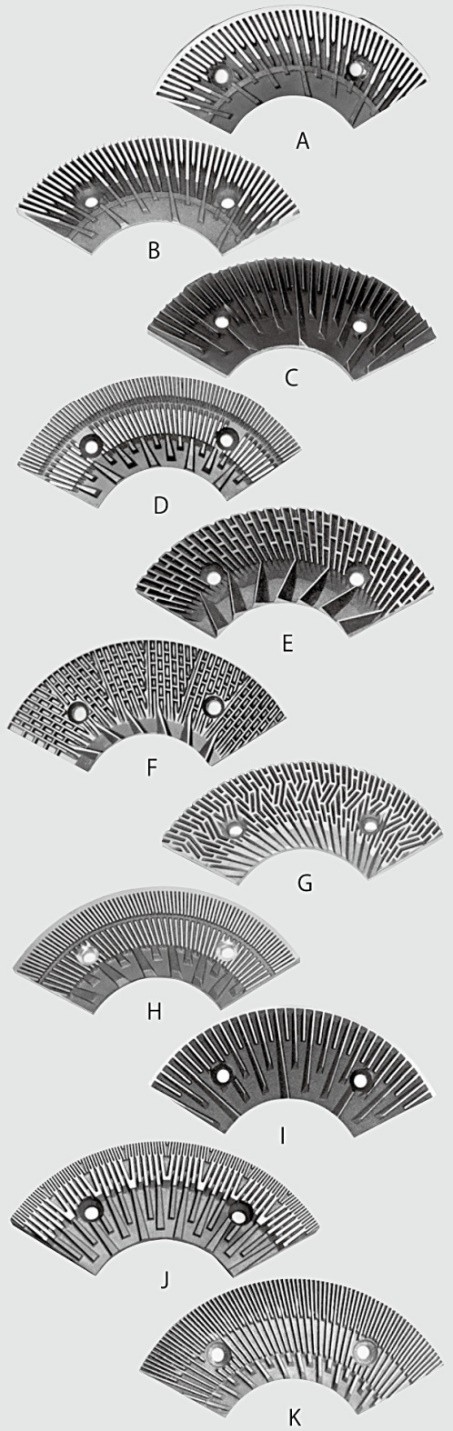

The pattern and material of the plate has a close relationship with not only pulp quality but also available feed amount of chip and specific power consumption. The pattern and material are selected based on experience and operation record. The plate is composed of two sections: breaking zone where chips are roughly broken, and refining zone for complete defibration and beating. The plate is made of high-chrome stainless steel. One set includes six plates. Three plates on each side (rotational and fixed sides) forms one segment. The photo shows the shapes.

Plate diameter: 305mm in diameter
Material: stainless steel antiwearing material
Outer dimensions: 260 x 115 x 15mm
Plate weight: 1.5kg x 6 plates

See brochure for shape and features

These Refiner Plates can be used with the following Refiners:

KRK-2500-I   KRK High-consistency Disc Refiner

KRK-2500-II  KRK Continuous High-consistency Refiner

KRK-2503     KRK Pressurized Refiner
