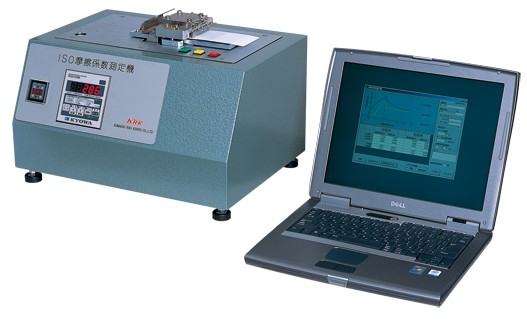

ISO Friction Coefficient Tester

Description

The coefficient of friction on paper surface is one characteristic that provides a measurement for evaluating the paper surface condition. This tester helps easy measurement of static friction.

It works as follows:

A specimen is attached onto each of the inclined driving plate and the traveling weight.  As the inclined driving plate gradually increases the inclination, the weight travels at a point where the inclination exceeds the limit of the friction range of the specimen. At that point, the sensor detects the motion and stops the inclined plate immediately. The coefficient of static friction is calculated from that inclination. As the scale markings represent values of the inclination (θ) converted into you tan θ, you can directly read the value of the coefficient of static friction (µ).

Specimen size: 200 x 70mm
Driving distance: 70mm,
Weight: 800 + 5g, size 60 X 60mm
Weight movement: automatic vertical movement
Driving speed: 20mm/sec. (optional 5 to 100mm/sec.)
Power source: 100/110VAC 50/60 Hz 2A
Compressed air: 0.5MPa
Outer dimensions: 450 x 380 x 330mm
Instrument weight: 20kg
