Description

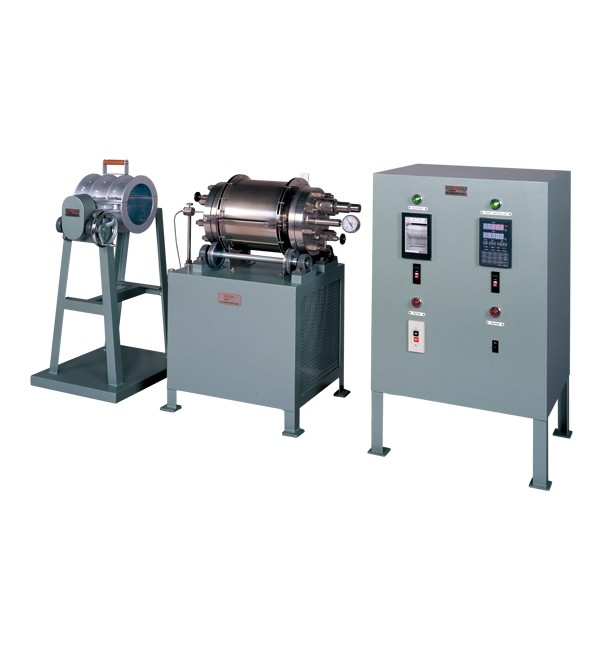

This autoclave is used in digestion experiments on various wood chips. To strictly comply with the temperature setting according to a preset cooking schedule, a thermometer device is installed on the chamber body for program-based control, enabling automatic control via the control unit. This mechanism significantly contributes to higher accuracy of digestion experiments, improved reproducibility, and labor saving.
Temperature Controller: digital, program-based setting
Temperature Range: 0 to 300ºC, temperature accuracy +2%
Set Time: 1 minute to 99 hours/step, number of steps max. 99 steps
Number of Programs: max. 7
Control Method: PID
Temperature Detector: PT 100Ω
Optional: electronic recorder, record paper 60mm wide
Outer Dimensions: autoclave 590 x 450 x 900mm
Controller: 590 x 490 x 900mm
Reversing Device: 530 x 420 x 780mm
Instrument Weight:
Autoclave 133kg
Controller 69kg
Reversing device 46kg
