Crush Tester (Simplified)

Product Name : Crush Tester (Simplified)
Product Code :
KRK-2094
Details : Measure the Compressive Strength
Standard and Methods :TAPPI T 808, T 809, T 811, T 818, and T 821, ISO 12192, JIS P-8126-2005, Z-401, Z-402
Categories :Board including Packaging
Manufacturer : KRK (Kumagai Riki Kogyo Co. Ltd.)
Regional Availabilty : US/Can/Mex
Request a Quote
KRK-2094_Crush_Tester

Description

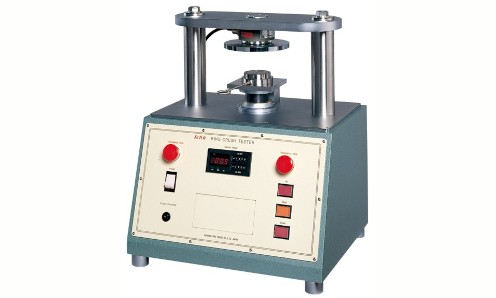

This tester measures compression strength of liners, corrugated mediums, corrugated board, and small-sized containers. It determines resistance against compression in various forms. It is designed for simplified measurement of compression strength, and a load cell is employed for load detection, achieving accuracy and reproducibility.

Test Item: CMT, FCT, RCT, ECT, PAT, CCT (Each test part is needed) option
Maximum Bad: 2000N
Load Detection: load cell
Loading: square screw for upward/downward motion
Movement Speed: 12.7 + 0.55mm/min
Stroke: 90mm – Specimen Size: 12.7mm wide, 152.4mm long (ring crush test)
Standard Accessories: holders for ring crush, for each thickness, 9 pieces (standard)
Power Source: 100/110 VAC 50/60Hz 3A
Outer Dimensions: 430 x 370 x 560mm
Instrument Weight: 69kg
