Description

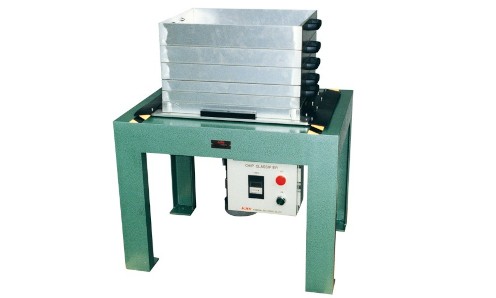

Like the mode l, this equipment is also used for chips classification. Compact in size, this classifier provides superior operability. The screen box allows various combinations of holes with different shapes including round ones and slits. The box can also be mounted or removed easily.
Screen Dimensions: 500 x 400 x 40 to 70mm
Material of Screen Box: aluminum
Material of Screen Plate: SUS
Kinds of Screen: standard screen opening diameters 40, 28.6, 22, 9.5, 4.8mm, scrap tray
Vibration Frequency: 100/min.
Stroke: 120mm
Power Source: three-phase 200/220VAC 50/60Hz 5A
Outer Dimensions: 850 x 600 x 960mm
Instrument Weight: 135kg
