Coefficient of Friction Tester for Cards

Description

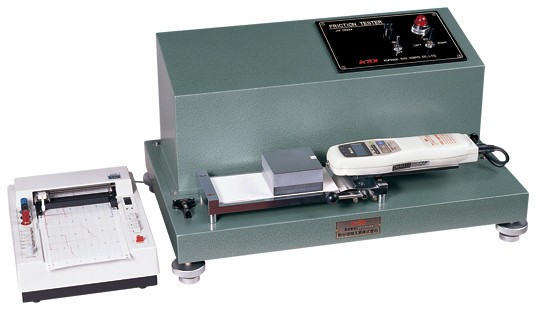

The coefficient of friction on a paper surface is one measure that indicates the surface condition of the paper. This COF tester measures the coefficients of friction in the mechanism. A 1-kg weight is placed on two overlapped sheets of the same specimen paper. While sliding the weight, coefficients of static and kinetic friction are read on push-pull gauge.

Optionally, a recorder can be installed to help read coefficients of static and kinetic friction more easily as well as to enable recording of changes of the kinetic friction force.

Specimen Size: 180 x 80mm
Driving Distance: 5mm, with automatic stop device
Weight: 1000g, size 76 x 76mm
Driving Speed: 90cm/ min.
Power Source: 100/110VAC 50/60Hz 1A
Outer Dimensions: 560 x 350 x 300mm
Instrument Weight: 42kg
