Description

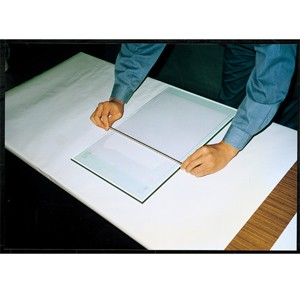

Coating rod, also called wire bar, easily applies a certain thickness of coating color over a substrate. This instrument is composed of polished stainless steel round rod wound with stainless steel wire of the specified diameter. Color that has passed valleys between wires coats the surface of paper, etc.
Substrate paper, plastic film, metal sheet
Coating Liquid coating color, ink, paint, wax, emulsion, adhesive, etc.
Stainless Steel Rod 12.7 or 6.35mm in diameter×405mm long
Wire Winding 300mm wide
|
Rod |
Wet Film |
Rod |
Wet Film |
Rod |
Wet Film |
|
No. |
Microm |
No. |
Microm |
No. |
Microm |
|
3 |
6.86 |
18 |
41.1 |
40 |
91.4 |
|
4 |
9.14 |
20 |
45.7 |
42 |
96.0 |
|
5 |
11.43 |
22 |
50.3 |
44 |
100.6 |
|
6 |
13.7 |
24 |
54.8 |
46 |
105.2 |
|
7 |
16.0 |
26 |
59.4 |
48 |
109.8 |
|
8 |
18.3 |
28 |
64.8 |
50 |
114.3 |
|
9 |
20.6 |
30 |
68.6 |
55 |
125.7 |
|
10 |
22.9 |
32 |
73.2 |
60 |
137.2 |
|
12 |
27.4 |
34 |
77.7 |
65 |
148.6 |
|
14 |
32.0 |
36 |
83.3 |
70 |
160.0 |
|
16 |
36.6 |
38 |
86.9 |
75 |
171.5 |
