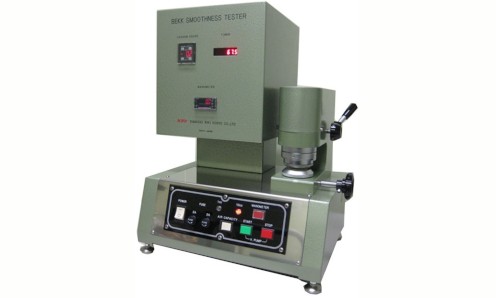

Bekk Smoothness Tester (HK Model)

Description

Smoothness of paper is one of the important factors to evaluate writing and printing aptitudes of paper. With this machine, test is conducted in the following procedure: place a sheet of paper on the well-polished surface of glass constituting an optical surface, apply a 0.1 MPa pressure on the top of the paper and measure the time needed for a 10cc air to penetrate through the gap between the paper surface and the glass surface. To solve the problem of consumption of much time for measurement of specimens with a high smoothness, a rapid measurement system is provided, which can measure penetration time of 1cc air, 1/10 of the standard air volume.

Measurement Area: 10 + 0.05cm2
Specimen Pressurization: 100kPa
Pressurization Type: cam
Vacuum Meter: digital
Timer: max. 99999.9seconds
Measurement Vacuum: 50.7 to 48.0kpa
Measurement Air Volume: 10cc or 1cc, selectable
Power Source: 100/110VAC, 50/60Hz 1A
Air Source: 0.5MPa
Outer Dimensions: 380 x 290 x 510mm
Instrument Weight: 24kg
